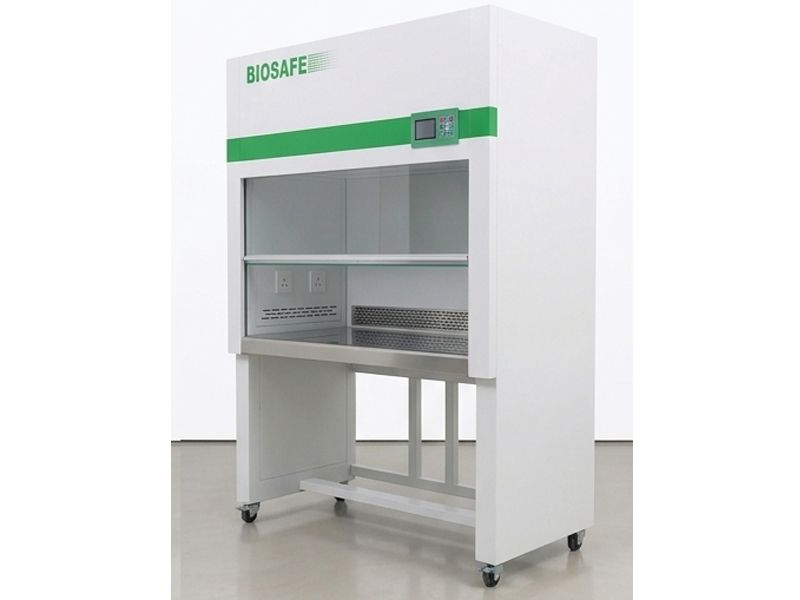

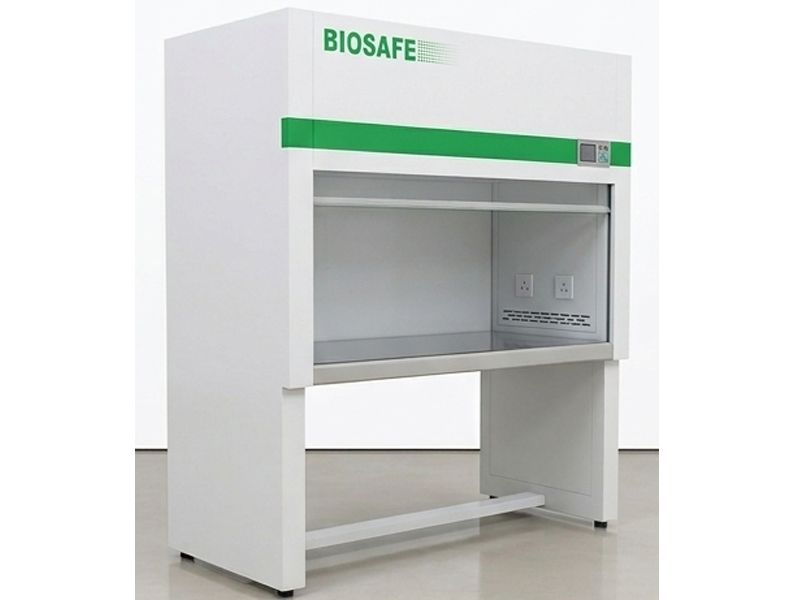

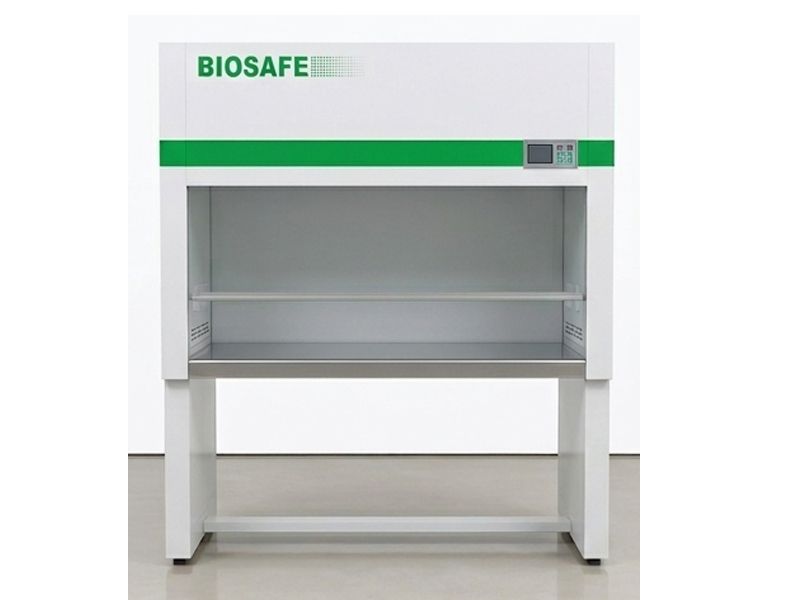

BIOSAFE Laminar Air Flow Cabinets are engineered for high-performance clean air applications where product protection and contamination control are critical. The cabinets are equipped with high-efficiency H14 HEPA filters offering 99.995% efficiency at 0.3 microns, providing ISO Class 5 clean working conditions.
The cabinets feature a robust construction with electro-galvanized steel coated using anti-microbial powder coating and a stainless steel 304 work surface for long-term durability and easy cleaning. The ergonomic cabinet design improves operator comfort during extended laboratory work.
Advanced models are equipped with a microprocessor-controlled LCD display system that allows real-time monitoring of operational parameters including airflow velocity, filter life, UV lamp lifespan, temperature, date, time, and system status. Audible and visual alarms help ensure safe and uninterrupted operation.
The cabinet includes UV-C sterilization with safety interlock systems, LED lighting for enhanced visibility, adjustable airflow speed, memory function during power failure, and optional accessories such as gas taps, water taps, IV bars, foot switches, motorized sash systems, and ULPA filtration.
BIOSAFE Laminar Air Flow Cabinets are suitable for applications including:
- Microbiology laboratories
- Pharmaceutical preparation
- Tissue culture work
- Electronics assembly
- Medical laboratories
- Food and beverage testing
- Research and development laboratories
- Sterile sample handling
- Quality control applications
General Specifications
Construction
- Exterior made of electro-galvanized steel with anti-microbial powder coating
- Stainless steel 304 working surface
- UV-resistant tempered glass side panels
- Ergonomic slanted front design for operator comfort
- Smooth curved corners for easy cleaning and reduced contamination accumulation
Filtration System
- H14 HEPA filter with 99.995% efficiency at 0.3 microns
- Optional ULPA filter upgrade available
- ISO Class 5 cleanliness level
- Washable pre-filter to extend HEPA filter lifespan
Control System
- Microprocessor-controlled LCD display (Advanced models)
- Real-time monitoring of airflow, filter life, UV lifespan, temperature, and system status
- Audible and visual alarm system
- Adjustable air speed control
- Memory function after power failure
Lighting & Sterilization
- UV-C sterilization lamp (253.7nm)
- LED fluorescent lighting
- Illumination level above 1000 Lux
- UV safety interlock system
Front Sash
- Manual sliding tempered glass sash
- Optional motorized sash
- UV and blower interlock safety system
- Ergonomic counter-balanced operation
Mobility & Accessories
- Adjustable base stand with lockable castors
- Waterproof electrical sockets
- Optional gas and water taps
- Optional IV bars and foot switch
- Optional upgraded LED lamps
Vertical Laminar Air Flow Cabinets
Vertical Laminar Air Flow Cabinets direct HEPA-filtered air vertically downward across the work area to maintain a sterile environment. These cabinets are ideal for applications requiring clean air protection while minimizing turbulence within the work zone.
The vertical airflow design improves user comfort and allows efficient airflow circulation with rear wall perforations that help eliminate dead air zones.
Key Features
- Vertical downward airflow system
- Reduced airflow turbulence
- Better operator comfort with ergonomic slanted front
- Rear perforation design to improve airflow distribution
- Compact and efficient laboratory design
- Suitable for microbiology and pharmaceutical applications
Typical Applications
- Sterile media preparation
- Pharmaceutical compounding
- Tissue culture work
- Laboratory research
- Electronics handling
- Sterile sample preparation
Horizontal Laminar Air Flow Cabinets
Horizontal Laminar Air Flow Cabinets provide HEPA-filtered air horizontally across the work surface directly toward the operator area. This design offers excellent product protection with uniform airflow across the entire work zone.
Horizontal cabinets are commonly used for non-hazardous applications where maximum product cleanliness is required.
Key Features
- Horizontal clean airflow across working area
- Uniform airflow distribution
- Large unobstructed working space
- Ideal for particle-sensitive operations
- Low turbulence airflow performance
- Easy access to working area
Typical Applications
- Electronics assembly
- Optical component handling
- Medical device assembly
- Sterile packaging operations
- Laboratory sample preparation
- Precision manufacturing applications
